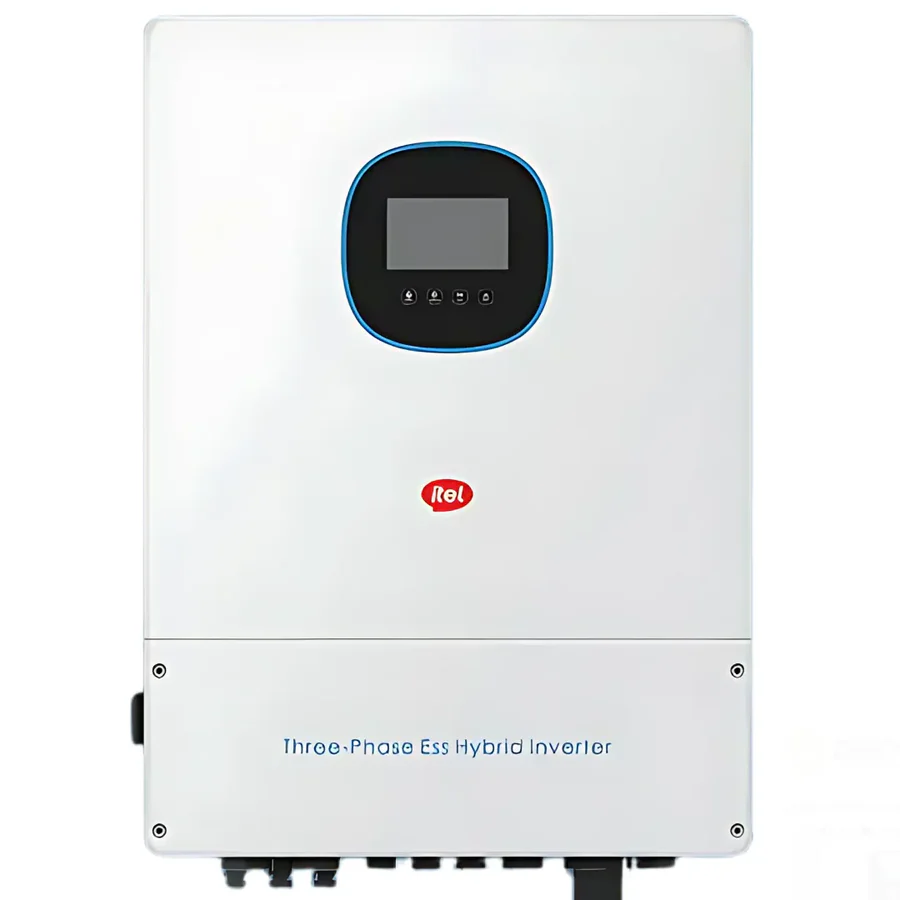

ITel 8 kW 3-Phase Hybrid Solar Inverter

Short Description:

The iTel IHY-8KL3 is a rugged IP66-rated 3-phase hybrid inverter delivering 8 kW continuous output and 16 kW surge capacity. With high-efficiency dual MPPT, fast 5 ms UPS switch-over, and robust PV/battery support, it’s perfect for industrial, commercial, or large residential solar systems—even in harsh outdoor environments.

Please WhatsApp text message along with product picture on 03242586315 to get the lowest price

Short Specifications:

Model: iTel IHY-8KL3 (8 kW, 48 V, 3-Phase, IP66)

Power Output: 8,000 Watts (continuous)

Surge Power: 16,000 Watts (for up to 15 seconds)

PV Input Capacity: Up to 16,000 W, Maximum Voc 1000 V, Dual MPPT

Battery Voltage: 48 VDC (LiFePO₄ or Lead–Acid)

Charge/Discharge Current: Up to 200 A MPPT charge; 190–250 A discharge

Efficiency: Peak 98.6%, MPPT tracking ≥ 99.9%, conversion ≥ 97% Euro

Output Voltage: 380 VAC (3-phase), with <3% THDi

UPS Transfer Time: ~5–10 ms switch-over

Dimensions: Approx. 256 × 475 × 683 mm

Weight: ~38 kg

Protection: IP66 (dust & water resistant)

Operating Temperature: –25 °C to +60 °C (derates over 45 °C)

Parallel Capability: Up to 6 units (48 kW total)

Communication: Wi-Fi / RS485 / CAN / Dry-Contact

Warranty: 5 years replacement
