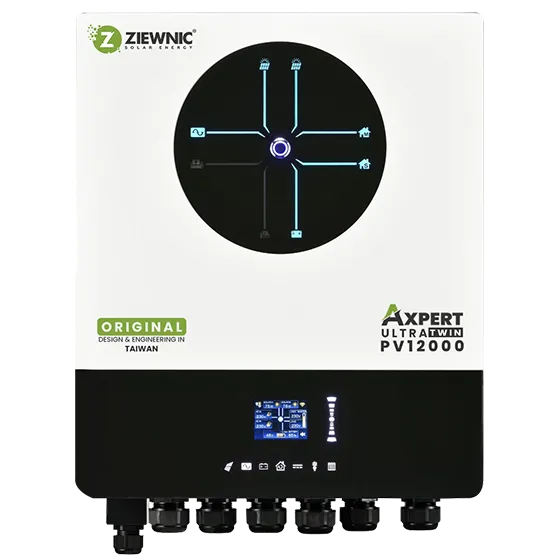

Ziewnic Axpert Ultra Twin Parallel PV12000 | 12KW Dual Output Hybrid Solar Inverter

ULTRA 11KW (PV12000)

Description:

The Axpert Ultra Twin Parallel PV12000 is a powerful 12KW hybrid solar inverter with advanced dual output functionality and parallel support. Designed for demanding solar setups, this inverter ensures uninterrupted power to both essential and non-essential loads, making it ideal for residential and commercial systems in Pakistan.

PARALLEL OPERATION WITH 6 UNITS. SPECIFICATION. Rated Power, 11000VA/11000W. Parallel Capability, YES, 6 units. AC Input. Voltage, 230 VAC. Selectable Voltage…

Price: Rs 307,000.00   |   In stock

Specifications:

• INTRODUCING ORIGINAL DESIGN AND ENGINEERING IN TAIWAN
• TWO INDEPENDENT AC POWER SOURCES CONNECTED AND SWITCHED AUTOMATICALLY
• MAXIMUM CHARGING CURRENT 150A
• SUPPORTS USB ON-THE-GO FUNCTION
• RESERVED COMMUNICATION PORT FOR BMS (RS485, CAN-BUS OR RS232)
• BUILT-IN FEED-IN GRID FUNCTION
• BUILT-IN 2.8” COLORED LCD WITH SLIDE OPERATION
• BUILT-IN POWER STATUS LIGHTING INDICATORS
• SUPPORT EXTERNAL BTS (BATTERY TEMPERATURE SENSOR) DETECTION
• BUILT-IN WIFI WITH APP FOR REMOTE MONITORING AND OTA FIRMWARE UPGRADE
• ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
• CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
• DUAL AC OUTPUTS FOR SMART LOAD MANAGEMENT
• COMPATIBLE WITH ALL KINDS OF LITHIUM BATTERIES
• OVERLOAD & SHORT CIRCUIT PROTECTION
• SUPPORT OPTIONAL GFCI, RAPID SHUTDOWN, AFCI DETECTION
• BUILT-IN COMMUNICATION PORT FOR BMS
• BATTERY EQUALIZATION FUNCTION TO OPTIMIZE BATTERY PERFORMANCE AND EXTEND LIFECYCLE
• PARALLEL OPERATION WITH 6 UNITS
• Model: Axpert Ultra Twin Parallel PV12000
• Rated Power: 12,000W (12KW)
• PV Input Capacity: Up to 13,000W
• Battery Voltage: 48V DC
• Inverter Type: Hybrid Pure Sine Wave
• Output Type: Dual Output (Essential & Non-Essential Loads)
• Max PV Voltage: 500VDC
• MPPT Range: 120V – 450V
• Max Charging Current: 120A
• Parallel Support: Up to 6 units
• Communication: USB / RS232 / RS485 / CAN
• Display: LCD with LED indicators
• Waveform: Pure Sine Wave
• IP Rating: IP20
• Weight: ~20–22 kg
• Warranty: 5 Years Official Warranty
