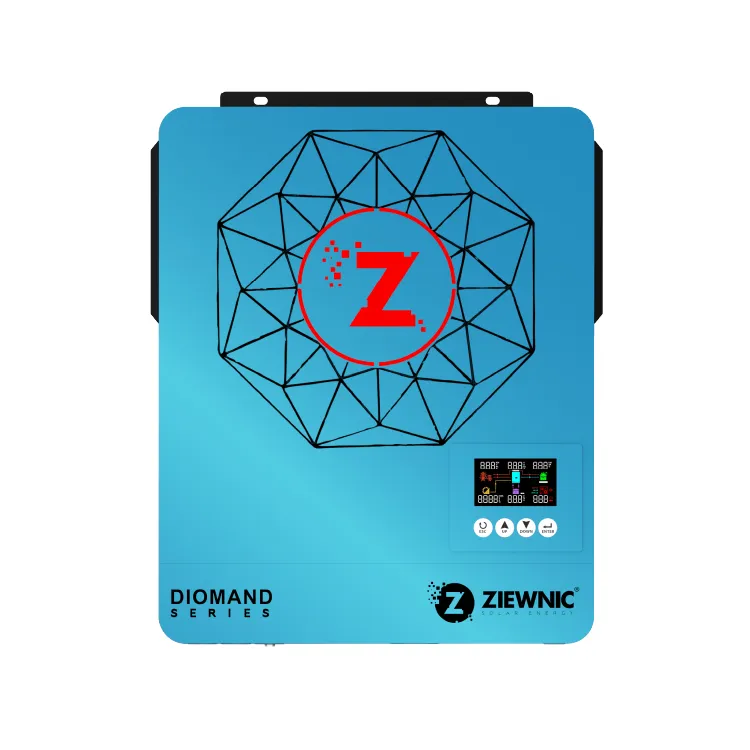

Ziewnic Diamond Series 6.5 kW PV8500 5G Hybrid Inverter

Short Description:

Ziewnic Diamond Series 6.5 kW PV8500 5G Hybrid Inverter from Ziewnic is a robust, multi-mode solar inverter engineered for modern residential and small-commercial energy systems. This pure sine-wave, hybrid 5th-generation unit allows seamless switching between solar, battery, grid, or generator power. It features dual MPPT solar tracking, extensive protections, and optional Wi-Fi monitoring—designed for both on-grid (net-metering) and off-grid operation. With rugged build quality and high surge capacity, it ensures reliable performance even in challenging environments.

Introducing 1st Time In Pakistan Real 5th Gen Inverter, Supporling high efficiency Mosfet, Chopper with bigger size · DIAMOND Series Inverter supports Multiple …

Price & Availability:

Price: Rs 139,999.00
Status: In Stock

Short Specifications:

• Model: Diamond Series PV8500 (6.5 kW, 1-Phase)
• Rated Output Power: 6,500 W
• Maximum PV Input Power: 8,500 W
• Maximum Solar Charging Current: 160 A
• MPPT Trackers: Dual, up to 27 A input each
• PV Input Voltage: 90–500 VDC (startup at 90 V, feeding at 120 V)
• Solar-to-AC Efficiency: Up to 98%
• Battery-to-AC Efficiency: ~94%
• Output AC Voltage: 220–240 VAC, 29 A rated current
• Power Factor: > 0.99
• Surge Capacity: 2× rated (13 kW for 5 sec)
• Battery Voltage: 48 VDC nominal
• Battery Charging Current: – Solar: 160 A | – AC: 100 A
• Dimensions: 420 × 310 × 110 mm
• Weight: ~11 kg
• Display & Communication: Color touch-LCD; RS232 / Wi-Fi / GPRS
• Operating Temperature: –10 °C to +50 °C
• Protection & Certifications: Built-in breaker, conformal coating, anti-dust, IP features
• Warranty: 5 Years
• Technology: Pure sine wave, true MPPT, zero-export ready, multiple working modes (ON/OFF/MKS/KS), lithium-battery compatible, grid-tie with net-metering support

Ideal For:

• 2-Ton Inverter AC
• Refrigerators, Washing Machines, Water Pumps
• Home or shop with high-energy demand
• Off-grid / hybrid solar systems with lithium battery
