CoreTech NEXGEN 10kW Hybrid Inverter
Original price was: Rs. 285,000.Rs. 270,000Current price is: Rs. 270,000.
CoreTech NEXGEN 10kW single-phase hybrid solar inverter, IP66. Dual MPPT, 20kW PV support, 48V battery. Karachi stock with original warranty card.
- ✓ Original warranty card
- ✓ Karachi stock
- ✓ Installation available

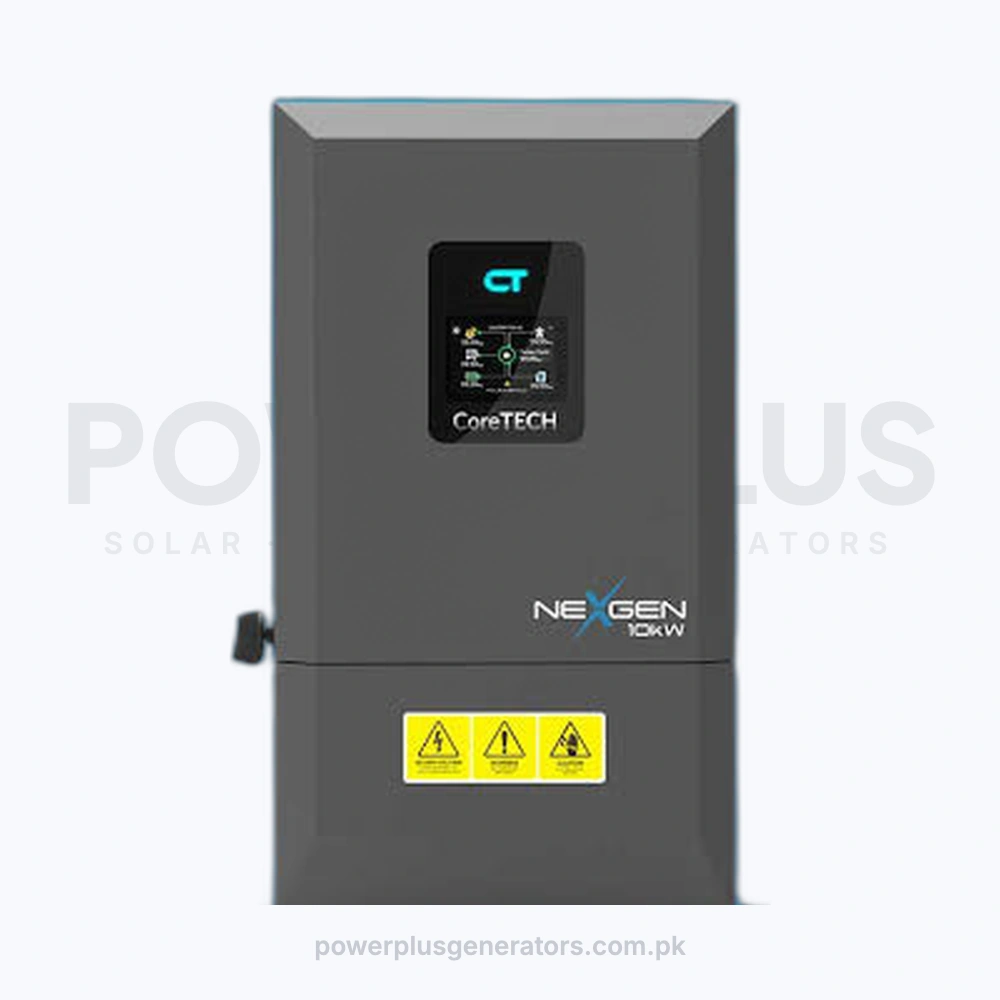

The CoreTech NEXGEN 10kW (PV20000) is a single-phase hybrid solar inverter that manages solar panels, battery storage, grid supply and household load from one unit. With 10 kW of rated output it is built for larger homes, showrooms and small commercial sites in Karachi.
Its IP66 rating is the real differentiator. Most inverters in this class are IP65 — one grade lower. IP66 means full protection against dust and high-pressure water jets. Karachi mein jahan chhat par jagah nahi hoti aur inverter bahar lagana parta hai, wahan yehi cheez faisla kun ban jati hai.
The dual MPPT trackers operate across a wide 90V–450V range. Practically, that means the system starts producing earlier in the morning and keeps working through overcast monsoon days — jab kam roshni par purane inverter band ho jate hain.
Technical specifications
| Model | CT NEXGEN 10kW Hybrid-SP (PV20000) |
|---|---|
| Rated output | 10,000 W |
| Max apparent power | 11 kVA |
| Phase | Single phase |
| Battery voltage | 48V (low voltage) |
| MPPT trackers | 2 (dual) |
| MPPT voltage range | 90V – 450V |
| Max PV input | 20,000 W |
| Ingress protection | IP66 |
| Topology | Transformerless |
| Transfer time | <4 ms |
| Monitoring | WiFi / GPRS, mobile app |
| Parallel operation | Supported |
Who this is for
Ye inverter un ghar walon ke liye hai jinka monthly bill 90,000 se upar jata hai, ya jahan AC ke saath motor aur doosre heavy loads chalte hain. At 10 kW you can run 16 to 20 panels.
Agar aap ka bill 40,000 ke qareeb hai to ye aap ki zaroorat se bara hai — 6 kW dekh lein. Hum bara system bechne ke liye zor nahi dete.
IP66 ki asal zaroorat tab parti hai jab inverter chhat par ya khuli jagah lagna ho. If it is going on a sheltered indoor wall, the IP54 model costs less and performs the same.
What you get
- Original manufacturer warranty card
- Authorized dealer stock — Power Plus is CoreTECH Solar’s Best Strategic Partner
- WiFi module aur mobile app ki setting, handover par
- Installation available in Karachi (quoted separately)
Warranty & service. Warranty claim manufacturer ke service centre par hoti hai — lekin hamari team aap ke saath jati hai. Aap ko akele supplier ke peeche nahi bhagna parta.
Common questions
How many panels can a 10 kW inverter run?
585W panels ke saath 16 se 20 tak. Final number chhat ki jagah aur aap ke load par depend karta hai — survey ke baad batate hain.
Can it run without a battery?
Yes, but you lose backup during load shedding. Hybrid inverter ka asal faida battery ke saath hi hai.
Can two units run in parallel?
Yes. Aage ja kar system barhana ho to inverter badalne ki zaroorat nahi parti.
Additional information
| Capacity | 10 kW |
|---|---|
| Protection | IP66 |
| Type | Hybrid inverter |
