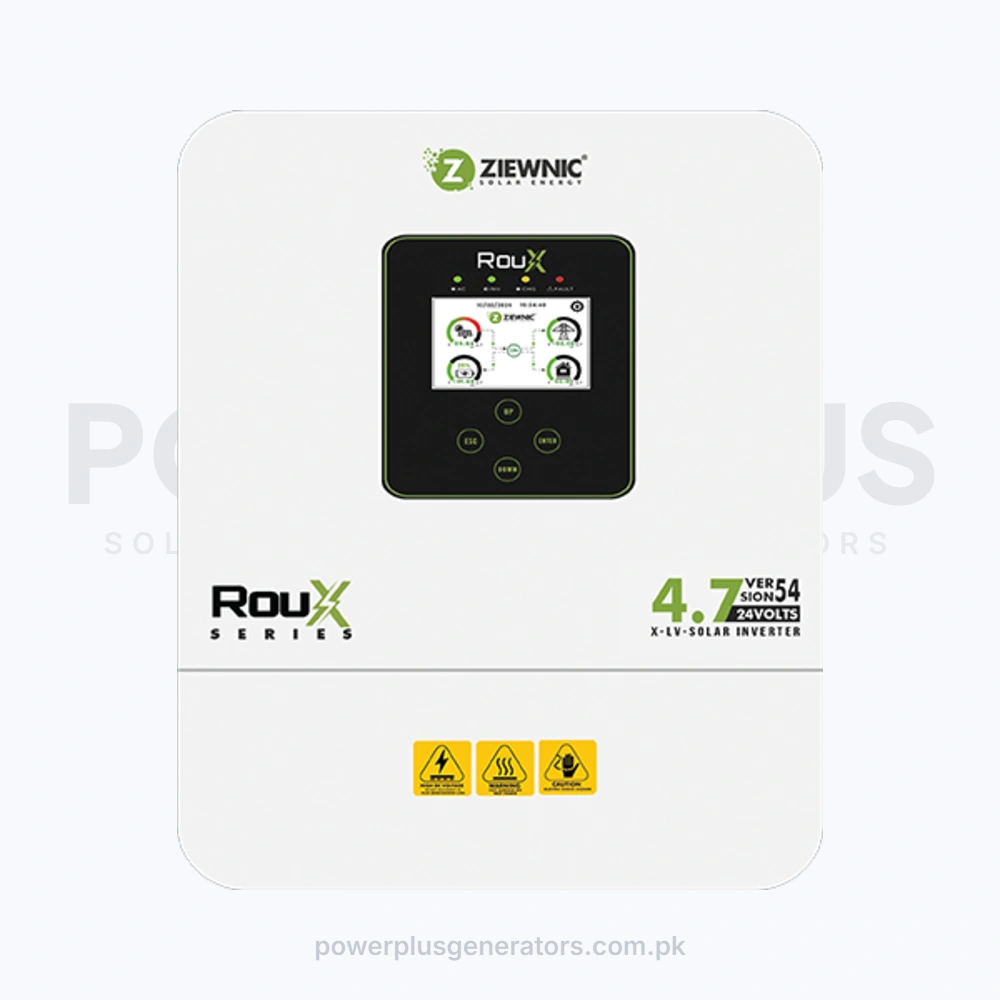

Ziewnic RouX 4.7kW Hybrid Solar Inverter X-LV 24V
Ziewnic RouX 4.7 kW PV7000 X-LV hybrid inverter, IP54. Dual MPPT, 24V battery, 7,000 W PV input, touch LCD.
- ✓ Original warranty card
- ✓ Karachi stock
- ✓ Installation available
The Ziewnic RouX 4.7 kW (PV7000) is an X-LV series hybrid inverter with dual MPPT and a 7,000 W solar input ceiling — well above its rated output, so you can oversize the array and still capture more energy on hazy days.
Is model ko PV7000, PV-7000 aur PV 7000 — teeno tarah likha jata hai. Sab aik hi unit hain.
Aluminium casing, colour touch LCD aur built-in WiFi standard hain. Monitoring Ziewnic Inverter / PV Pro app se hoti hai, iOS aur Android dono par.
Transfer time 10 ms hai computer equipment ke liye aur 20 ms household ke liye — bijli jane par PC tak band nahi hota.
Technical specifications
| Model | RouX 4.7 kW – PV7000 (X-LV) |
|---|---|
| Rated AC power | 5,000 W |
| Rated power, PV mode | 4,700 W |
| Rated power, DC mode | 4,500 W |
| Peak power | 8,000 VA |
| Battery voltage | 24 V DC |
| MPPT trackers | Dual |
| MPPT tracking range | 60 – 500 V DC |
| Best Vmp range | 300 – 400 V DC |
| Max PV input | 7,000 W |
| Max PV input current | 32 A |
| Max charge current | 120 A |
| Transfer time | 10 ms (computer) / 20 ms (household) |
| Ingress protection | IP54 |
| Casing | Aluminium |
| Display | Colour touch LCD |
| Monitoring | Built-in WiFi, PV Pro app |
Who this is for
For homes running one to two air conditioners with a good amount of roof space — 7 kW ka PV input ka matlab hai ke aap 12 panel tak laga sakte hain.
Ye 24V battery system hai. Agar aap bari battery bank banane ja rahe hain to 6.7 kW wala 48V model behtar rahega.
What you get
- Original Ziewnic warranty card
- Genuine imported stock — refurbished ya unbranded units hum nahi bechte
- App aur WiFi ki setting handover par
- Installation available in Karachi (quoted separately)
Warranty & service. Warranty claim manufacturer ke service centre par hoti hai — lekin hamari team aap ke saath jati hai. Aap ko akele supplier ke peeche nahi bhagna parta.
Common questions
IP54 ka matlab kya hai?
IP54 means the casing resists dust and splashing water. Ye semi-outdoor jagah ke liye theek hai — chhajje ke neeche, utility area, ya deewar par jahan seedhi baarish na pare. Agar inverter bilkul khuli chhat par lagna hai to IP65 ya IP66 wala model lein.
24V ya 48V — farq kya hai?
Battery system ka voltage hai. 24V chhote systems ke liye hai aur battery sasti parti hai. 48V mein current kam bahti hai, cable patli chalti hai aur nuqsan kam hota hai — is liye 5 kW se upar hamesha 48V behtar hai.
PV input rated output se zyada kyun hai?
Panels apni rated power kabhi kabhi hi deti hain — dhundh, gard aur garmi mein kam ho jati hai. Is liye array ko inverter se bara rakhna qudrati hai, aur zyada din tak poora output milta hai.
Additional information
| Capacity | 4.7 kW |
|---|---|
| Battery voltage | 24V |
| Type | Solar inverter |
