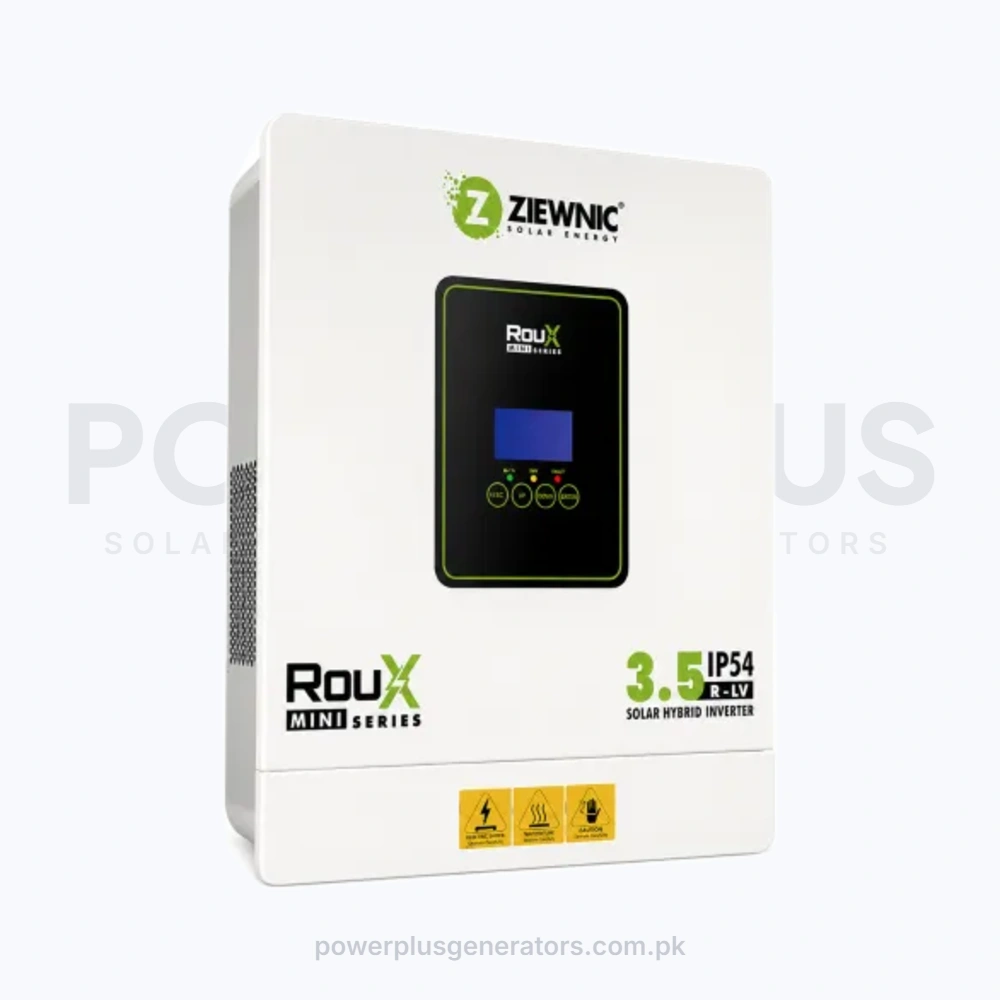

Ziewnic RouX Mini 3.5kW Hybrid Solar Inverter IP54
Ziewnic RouX Mini PV5000 3.5 kW hybrid inverter, IP54. True MPPT 55–430V, 24V battery, aluminium casing.
- ✓ Original warranty card
- ✓ Karachi stock
- ✓ Installation available
The Ziewnic RouX Mini (PV5000) is a 3.5 kW high-frequency hybrid inverter with an aluminium casing and IP54 protection. It runs on solar, battery and grid together, and works with lithium, gel and VRLA batteries.
Is model ko PV5000, PV-5000 aur PV 5000 — teeno tarah likha jata hai. Sab aik hi unit hain.
Chhote ghar aur dukaan ke liye ye aik mehfooz shuruaat hai. Pure sine wave output aur power factor 1.0 ka matlab hai ke computer, LED TV aur fridge jaise sensitive load bhi araam se chalte hain.
Technical specifications
| Model | RouX Mini – PV5000 |
|---|---|
| Rated power | 3,500 VA (3.5 kW) |
| Battery voltage | 24 V DC |
| MPPT type | True MPPT |
| MPPT voltage range | 55 – 430 V DC |
| Max PV input | 5,000 W |
| Max PV input current | 18 A |
| Output waveform | Pure sine wave |
| Power factor | 1.0 |
| Efficiency (PV → inverter) | 97% |
| MPPT efficiency | 98% |
| Ingress protection | IP54 |
| Casing | Aluminium |
| Technology | 6th generation, high frequency |
Who this is for
For small homes, shops and offices — fans, lights, fridge aur aik AC tak.
Ye 24V system hai. Agar aap ka load barhne wala hai ya do AC chalane hain, to 48V wala model lein — baad mein inverter badalna panels barhane se kahin mehnga parta hai.
What you get
- Original Ziewnic warranty card
- Genuine imported stock — refurbished ya unbranded units hum nahi bechte
- App aur WiFi ki setting handover par
- Installation available in Karachi (quoted separately)
Warranty & service. Warranty claim manufacturer ke service centre par hoti hai — lekin hamari team aap ke saath jati hai. Aap ko akele supplier ke peeche nahi bhagna parta.
Common questions
IP54 ka matlab kya hai?
IP54 means the casing resists dust and splashing water. Ye semi-outdoor jagah ke liye theek hai — chhajje ke neeche, utility area, ya deewar par jahan seedhi baarish na pare. Agar inverter bilkul khuli chhat par lagna hai to IP65 ya IP66 wala model lein.
24V ya 48V — farq kya hai?
Battery system ka voltage hai. 24V chhote systems ke liye hai aur battery sasti parti hai. 48V mein current kam bahti hai, cable patli chalti hai aur nuqsan kam hota hai — is liye 5 kW se upar hamesha 48V behtar hai.
Additional information
| Capacity | 3.5 kW |
|---|---|
| Protection | IP54 |
| Type | Hybrid inverter |
| Battery voltage | 24V |
Related products
Sirf inverter ki qeemat, ya poore system ki?
Poora kharcha dekhein →Inverter ke saath panels, battery, structure, cable aur installation bhi lagti hai. Calculator par apna inverter chunein aur poora total dekh lein.
